Effect of Different Organic Compounds on Phosphorus Removal by Ferric Iron-dependent in Wastewater Treatment

Materials and methods

Materials

Instruments: The following instruments were utilized in this study: an X-ray diffractometer from Ultiman IV (Japan), a Fourier infrared spectrometer (United States, Nicolet iS50), an electronic balance (German, Dolly BSA224S), a ultraviolet spectrophotometer (UV2600), a coagulation six league mixer (MY30000-6 g), a centrifuge table low speed (Shanghai Anting TDL-4DB), a Zeta voltmeter (ZS90Zeta, Melvin, UK), and a pH meter (Ray magnetic PHS-3E).

The following agents were utilized: iron hexahydrate chloride, anhydrous sodium acetate, anhydrous calcium chloride, ammonium chloride, magnesium sulfate, sodium chloride, potassium dihydrogen phosphate, sodium hydroxide, hydrochloric acid, ascorbic acid, ammonium molybdate, CA, and morpholine ethyl sulfonic acid (MES). The solutions utilized in the experimental procedure were prepared with high-purity reagents and deionized water.

Synthetic wastewater: anhydrous sodium acetate (0.513 g/L), ammonium chloride (0.153 g/L), magnesium sulfate (0.154 g/L), calcium chloride (0.042 g/L). In accordance with the experimental design, potassium dihydrogen phosphate, iron hexahydrate chloride, and organics were added as required in different experiments.

Methods

The pH is a significant factor influencing the efficiency of phosphorus removal by Fe(III). Accordingly, the pH value in the reaction system was calibrated to 7 ± 0.2 with 10 mmol·L^-1 morpholine ethyl sulfonic acid (MES) buffer [34]. The reaction system was supplemented with 0.1 mmol·L^-1 NaCl to ensure a constant ionic strength in the solution.

Experiment on effects of organics on phosphorus removal: The typical organics were selected based on the analysis of the wastewater contents, which revealed the presence of starch, glucose, bovine serum protein, Tween 80, fulvic acid (FA), and CA. The impact of varying concentrations of organics on phosphorus removal efficiency by Fe(III) was examined through the implementation of batch tests. The concentrations of the organics were set at 0, 10, 20, 40, 80, and 100 mg·L^(−1), respectively. The phosphorus concentration was set at 10 mg·L^-1, and Fe (III) was added in a ratio of n (Fe): n (P) = 1.4:1. The beaker containing the synthetic wastewater was placed in a six-link mixer and subjected to agitation at 200 rpm for one minute and 50 rpm for 15 minutes. Subsequently, the beaker was allowed to stand for 20 minutes. Samples were collected from a depth of 2 to 3 cm below the liquid surface to determine the concentration of dissolved phosphorus.

Comparison of phosphorus removal methods: In order to investigate the phosphorus removal process of iron salt, two distinct groups were established: the conventional chemical phosphorus removal group (CCPR group) and the iron hydroxyl oxide (Fe-HFO) phosphorus removal group.

The CCPR group is defined as follows: Subsequently, Fe (III) (25.3 mg·L^-1) and CA (0-30 mg·L^-1) were added in a sequential manner to an aqueous solution with a phosphorus concentration of 10 mg·L^-1. The alteration of the chemical bond in the sediments before and following the addition of CA was ascertained through FTIR analysis. X-ray diffraction (XRD) spectroscopy was employed to ascertain the alteration in the composition of the sediments before and following the introduction of CA.

The HFO group prepared a solution of Fe-HFO according to the methodology outlined in the published source [35]. Subsequently, phosphate (10 mg·L^-1) and CA (0-30 mg·L^-1) were added successively to the Fe-HFO solution (25.3 mg·L^-1). Periodic samples were obtained for the purpose of determining the efficiency of phosphate removal in both systems. The alteration of the chemical bond in the sediments before and following the addition of CA was ascertained through FTIR analysis. The alteration in the material composition of the sediments before and following the introduction of CA was ascertained through XRD spectroscopy.

FTIR and XRD spectroscopy detection: The Fourier transform infrared spectroscopy (FTIR) was employed to investigate the formation and fracture of chemical bonds during the Fe(III)-dependent phosphorus removal process. X-ray diffraction spectroscopy was employed to ascertain the nature of the products formed during the Fe(III)-dependent phosphorus removal process. The phosphorus removal products described in section 1.2.2 were collected, washed, centrifuged, and allowed to dry naturally. They were then analyzed by FTIR and XRD spectroscopy. All samples were subjected to analysis on the platform of the Shaanxi Provincial Key Laboratory of Environmental Engineering.

The XRD data analysis revealed that the diffraction angle, intensity, and crystal plane spacing of the 20-0011 diffraction peak were consistent with the data of the standard card (lepidocrocite: JCPDS no. 74-1877, goethite: JCPDS no. 81-0464) in the Joint Committee on Powder Diffraction Standards (JCPDS) database.

Results and discussion

The organic matter concentrations applied in this study (0–160 mg·L^-1) were designed to reflect typical wastewater conditions, ensuring that the observed removal patterns can be directly linked to the Dissolved Organic Carbon (DOC) and Volatile Fatty Acid (VFA) profiles of real systems, thereby enhancing the engineering relevance of the findings.

Citric acid (0–100 mg·L^-1) and fulvic acid (0-160 mg·L^-1) were selected to encompass representative conditions of municipal sewage (DOC 10–50 mg·L^-1, with VFAs contributing 20–40% or 5–20 mg·L^-1) and industrial wastewater (DOC 50-150 mg·L^-1, VFA >50% of DOC; up to 80–120 mg·L^-1 in citric acid production effluents). For example, 20 mg·L^-1 citric acid reduced phosphorus removal efficiency by ~30%, consistent with fluctuations observed in municipal sewage during high-VFA periods (15–25 mg·L^-1 in early rainy seasons). At 80

mg·L^-1 citric acid, removal efficiency declined by >70%, mirroring challenges in untreated food-processing wastewater. These outcomes validate the practical representativeness of the experimental design.

A clear relationship was established between phosphorus removal inhibition and the proportion of carboxyl functional groups. When carboxyl-containing organics constituted <30% of DOC (as in municipal sewage), efficiency loss was <20% even at DOC levels of 40 mg·L^-1 (e.g., 20 mg·L^-1 furfuric acid with 0.75 carboxyl groups). In contrast, when carboxyl organics exceeded 50% of DOC (typical of industrial effluents), only 60 mg·L^-1 DOC was sufficient to cause >50% efficiency loss (e.g., 60 mg·L^-1 citric acid with a carboxyl content of 1.56). These patterns provide actionable engineering guidance: in municipal wastewater, phosphorus removal remains stable if VFA/DOC <0.3, or aerobic stripping reduces VFA to <20

mg·L^-1; in high-carboxyl industrial wastewater, pretreatments such as anaerobic digestion or Ca-1 addition should limit carboxyl organic concentrations below 40 mg·L^-1 to maintain Fe(III)-based removal efficiency above 80%.

In summary, the experimental concentration gradient aligns well with real DOC/VFA distributions, allowing removal rate patterns to be directly mapped to engineering contexts. This provides a robust quantitative basis for optimizing pretreatment strategies in municipal and industrial wastewater, significantly enhancing the practical applicability of the conclusions.

Effects of organics on ferric ion-dependent phosphorus removal

Figure 1 illustrates the impact of various chemical and biological agents, including CA, FA, polysorbate-80, bovine serum protein, glucose, and starch, on the efficiency of phosphorus removal when Fe (III) is employed as a flocculant. Upon increasing the concentration of starch and glucose in the reaction system from 0 mg·L^-1 to 160 mg·L^-1, the amount of phosphorus removed remained relatively constant. As the concentration of bovine serum protein, polysorbate-80, FA, and CA increased from 0 mg·L^-1 to 160 mg·L^-1, the phosphorus removal percentage of the reaction system exhibited a decline in conjunction with the rise in organic concentration.

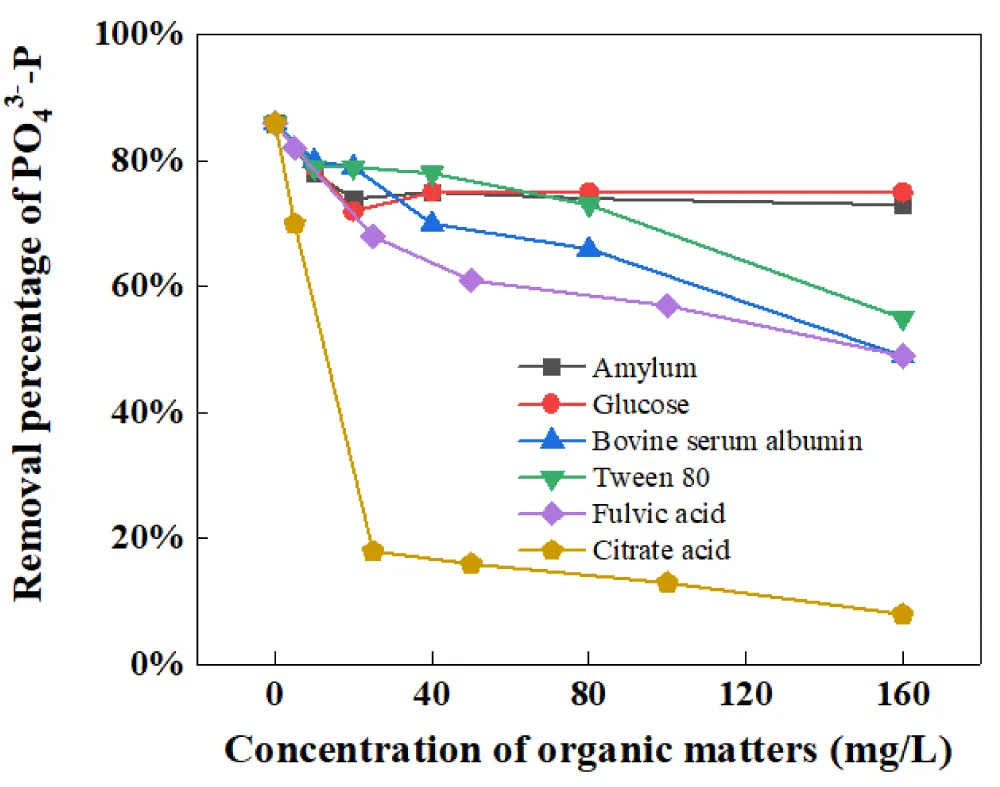

Figure 1: Effects of organics on ferric ion-dependent phosphorus removal efficiency.

For the sake of convenience in analysis, the decreased phosphorus removal percentage per mg·L^-1 of organics was defined as the influence intensity index of the specified organic. The original index based on mass concentration (mg·L^-1) was reformulated on a molar basis, defined as “the percentage decrease in phosphorus removal efficiency per mmol·L^-1 of organic matter (or per mmol·L^-1 of carboxyl functional groups).” This normalization eliminates bias arising from differences in molecular weight among organic compounds and more accurately captures the relationship between chemical characteristics (e.g., carboxyl group content) and phosphorus removal interference. For instance, at equal mass concentrations, citric acid (3 carboxyl groups, 192 g·mol-1) and fulvic acid (average 1.5 carboxyl groups, ~500 g·mol-1) yield markedly different carboxyl molar concentrations. Thus, a carboxyl molar-based index more objectively reflects the true functional group activity. By employing a linear fitting technique to analyze the declining trend observed in each of the six selected organic lines presented in Figure 1, the resulting influence intensity indexes are presented in Table 1. The CA exhibited the greatest influence intensity index among the selected organics. It was observed to be 5 to 20 times higher than the other organics.

All six of the selected organics contain both a hydroxyl group and a carboxyl group. The ratios of hydroxyl and carboxyl functional groups in each organic are also presented in Table 1. Starch and glucose are notable for their abundance of hydroxyl groups. With regard to the impact of starch and glucose on Fe(III)-dependent phosphorus removal (Figure 1), the hydroxyl group was found to exert no discernible influence on the efficiency of phosphorus removal in the presence of Fe(III) as flocculants. Upon alteration of the concentrations of the organics, the removal percentages of phosphate exhibited a maximum decline of 15.11% (starch) and 16.28% (glucose). This finding suggests that the hydroxyl group exerted minimal influence on the Fe(III)-dependent phosphorus removal efficiency, a conclusion that aligns with the observations documented by Hue, et al. [36,37].

It is widely known that bovine serum protein contains a multitude of amino acid residues, that polysorbate-80 contains unsaturated fatty acids, and that FA contains carboxyl, hydroxyl, and other functional groups. As illustrated in Figure 1, these three organics exerted a notable influence on the Fe(III)-dependent phosphorus removal efficiency. The maximum decrease in phosphorus removal percentage was observed with bovine serum protein (43.02%), polysorbate-80 (36.05%), and FA (43.02%). Both bovine serum protein and FA contain a small quantity of carboxyl groups, whereas polysorbate-80 contains a substantial number of hydroxyl groups. The data indicate that CA has the most significant influence on the phosphorus removal efficiency when Fe(III) is used as the flocculant. The decline in phosphorus removal efficiency reached as high as 90.70%. The presence of numerous carboxyl groups in CA suggests that the carboxyl group content of organics is a crucial factor influencing their impact on Fe(III)-dependent phosphorus removal efficiency.

Further investigation is required to elucidate the mechanism by which the carboxyl group affects the Fe(III)-dependent phosphorus removal efficiency. Given its highest influence intensity index, the CA was selected as the representative organic in the following experiments to elucidate the relevant mechanism. This was achieved by detecting the formation and fracture of chemical bonds and analyzing the products in the reaction systems.

Influence of organic matter properties on the effectiveness of chemical phosphorus removal

In this experiment, three experimental groups (A, B, C) and one control group (CK) were established, with two replicates in each group.

Experimental Group A: Take one litre of effluent from the aerobic tank at the sewage treatment plant, add potassium dihydrogen phosphate, mix thoroughly, and then leave the solution to be used at a later point in time. The organic matter in the experimental system of this group is composed of particles, colloids, and ions.

Experimental Group B: The effluent from the aerobic tank of the wastewater treatment plant was allowed to stand for 12 hours, after which 1 L of the supernatant was taken, mixed well, and left for use. The organic matter in this experimental system is composed of colloids and ions.

The third experimental group is designated as Group C. The effluent from the aerobic tank of the wastewater treatment plant should be filtered through a 0.45-micron membrane. The resulting filtrate should be transferred to a 1-L container and stirred thoroughly before use. The organic matter in this experimental system is solely composed of ions.

The control group (CK) was prepared by taking the effluent from the aerobic tank of the wastewater treatment plant and treating it with H2O2-UV until no organic matter remained. Then, 1 L of the resulting filtrate was taken, mixed well, and left to be used. The experimental system of this group is devoid of any organic matter.

1. Three hundred milliliters of the pretreated sample were placed in a beaker, which was then placed on a six-unit mixer. Subsequently, ferric chloride was added, maintaining an iron-to-phosphorus ratio of 1.4:1.
2. The indicators of each experimental system were established at the outset of the experiment.
3. The stirrer was operated as follows: The speed of the agitator was set to 300 rpm for one minute, then reduced to 50 rpm for 15 minutes.
4. Following the stirring process, the beaker was permitted to rest for a period of 20 minutes, after which the supernatant was collected for the purpose of determining the indicators.

As can be seen from the Table 2, it can be concluded that:

1. The discrepancy between the precipitated and filtered effluent in terms of iron removal is not substantial, suggesting that colloids exert minimal influence on phosphorus removal. The removal of phosphorus was found to be significantly influenced by dissolved substances and insoluble particles, with a percentage impact of 5.3% and 3.6%, respectively.
2. The alteration in pH resulting from different pretreatment water quality is not significant. Furthermore, the pH change before and after the removal of phosphorus is not considerable. However, there is a notable reduction in pH overall following the removal of phosphorus, which can be attributed to the hydrolysis of iron.
3. The ORP of the different pretreatment water qualities varies. The precipitation of sewage has the lowest ORP, while the filtration of sewage has the highest. This is due to the precipitation of sewage entering the aerobic tank, resulting in a gradual reduction in redox potential. Conversely, the filtration of sewage through the filtration of air increases the ORP.
4. The iron content of the various pretreatment samples differs significantly, with the iron content of the samples after phosphorus removal being largely consistent.
5. ZATA fluctuates at different times, but its impact on phosphorus removal is not consistent.

Study of phosphorus remover injection and simulated domestic wastewater

In this experiment, three experimental groups (A, B, C) and one control group (CK) were established, with six replicates in each group.

Experimental Group A: Take 1.5 L of aerobic tank effluent from the sewage plant, mix it thoroughly, and allow it to be used. The organic matter in the experimental system of this group is composed of particles, colloids, and ionic organic matter, predominantly small molecules of organic matter with a high dissolved oxygen content.

Experimental Group B: Take 1.5 L of anaerobic tank water from the sewage plant, mix well, and await further instructions. The organic matter in the experimental system of this group is primarily colloidal and ionic, comprising predominantly macromolecular organic matter with no discernible dissolved oxygen.

Experimental Group C: The water from the secondary sedimentation tank of the sewage plant was collected, 1.5 L of filtrate was obtained, and the solution was stirred thoroughly and allowed to stand for future use. The organic matter in this experimental system is composed exclusively of ions. The organic matter content is minimal, as is the dissolved oxygen content.

The control group, designated CK, was configured with 1.5 L of simulated domestic sewage, which was then mixed thoroughly and prepared for use. The experimental system in this group contains dissolved organic matter and a single type of organic matter.

1. A total of 300 mL of pre-treated samples were transferred to a beaker, which was then placed on a six-mixer apparatus. Subsequently, ferric chloride was added to the beaker, with the iron and phosphorus ratio set at varying gradients.
2. At the outset of the experiment, ascertain the indicators of each experimental system.
3. The mixer was operated in accordance with the following procedure: The apparatus was set to rotate at 300 rpm for one minute and then at 50 rpm for 15 minutes.
4. Following the stirring process, the beaker was left to stand for a period of 20 minutes, after which the supernatant was extracted for the purpose of determining the indicators.

The initial water quality indicators were as follows (Tables 3-7), (Figure 2):

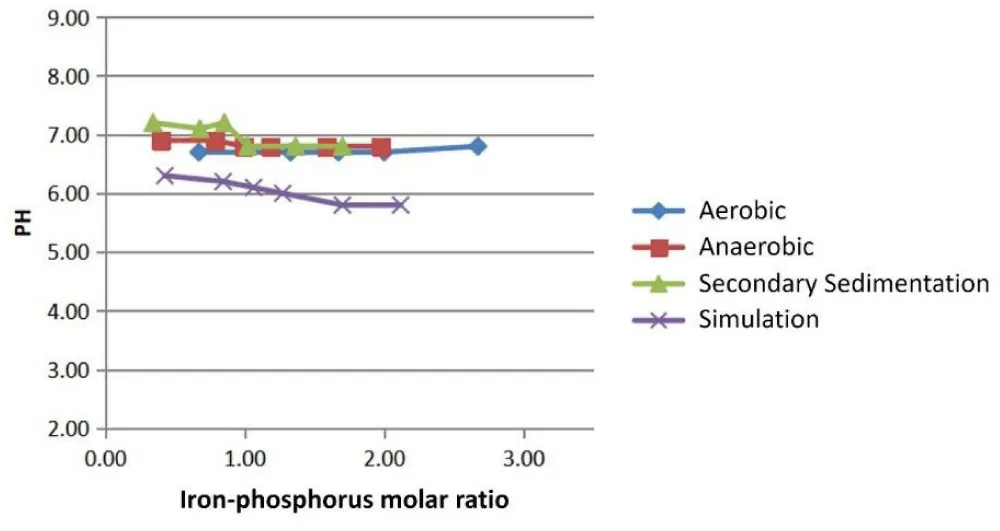

Figure 2: Influence of different water quality on pH under different ratio of Fe:P Ratio.

In conjunction with the aforementioned figure and the results presented in Table 2.1, it can be concluded that a variety of water quality parameters can be obtained. It is noteworthy that the initial pH difference is not approximately 7-7.2. Following the addition of phosphorus removal chemicals, the pH of the simulated sewage exhibited a maximum change of 5.8-6.3. Additionally, minimal alterations were observed in the remaining water quality parameters. Moreover, it can be observed that as the dosage of the drug is increased, there is a gradual decrease in pH (Figure 3).

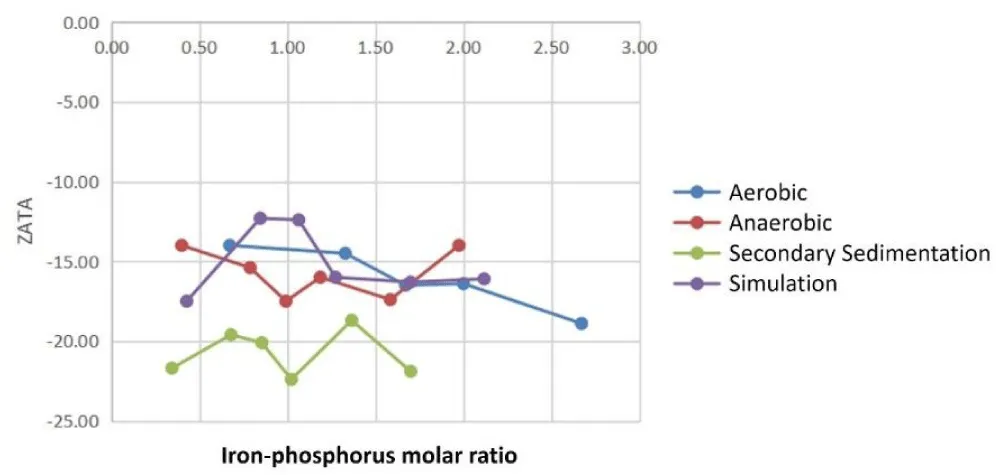

Figure 3: Influence of different water quality on ZATA under different ratio of Fe:P Ratio.

A combination of the aforementioned graph and Table 2.1 reveals an absence of a notable correlation between ZATA and iron dosing (Figure 4).

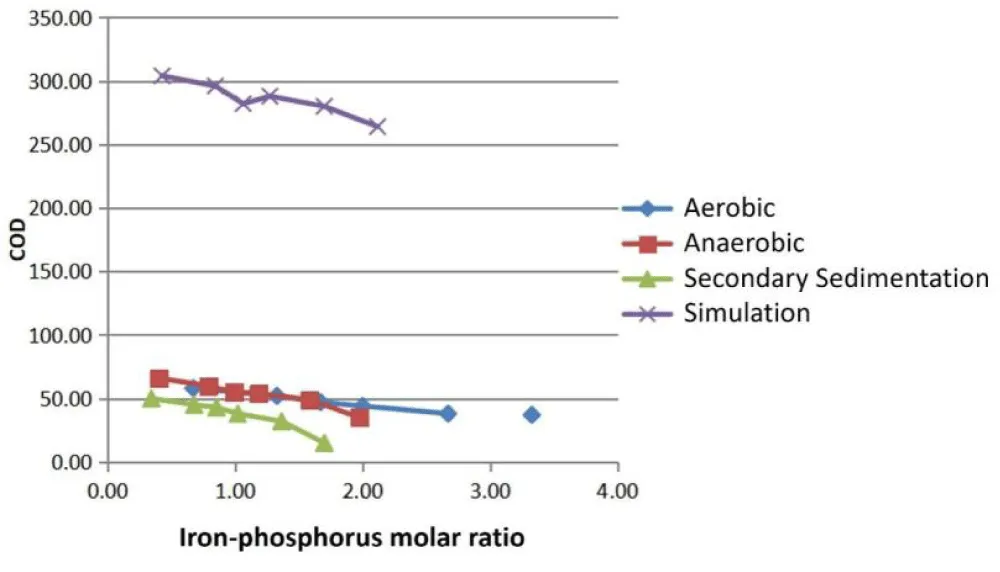

Figure 4: Influence of different water quality on COD under different ratio of Fe:P Ratio.

When the aforementioned figure and Table 2.1 are considered together, it becomes evident that the simulated domestic wastewater COD and other water quality changes exhibit a similar trend. The simulated wastewater COD reduction is estimated to be in the range of 94-136, with the aerobic tanks reducing by 131-151, the anaerobic tanks by 292-332, and the secondary sedimentation tanks by 5-37. Similarly, the quality of the COD in aerobic and anaerobic tanks exhibits comparable alterations, as illustrated in the figure. The gradual reduction of COD can be attributed to the removal of iron, phosphorus, and organic matter during the process. The anaerobic tank is the most effective at removing phosphorus, yet it also has the lowest efficiency in removing phosphorus. This is due to the organic matter impeding the removal of phosphorus. A comparison of the organic changes and phosphorus removal rate in the aerobic tank and anaerobic tank can be seen in the following figure. It can be observed that the removal of organic matter has a poor effect on the removal of phosphorus. Alternatively, it can be shown that the anaerobic tank is an effective method for removing phosphorus when combined with sedimentation. A comparison of the secondary sedimentation tank and the simulated wastewater revealed that the efficiency of organic matter removal and phosphorus removal in the simulated wastewater differed. This suggests that the various types of organic matter exert varying effects on phosphorus removal (Figure 5).

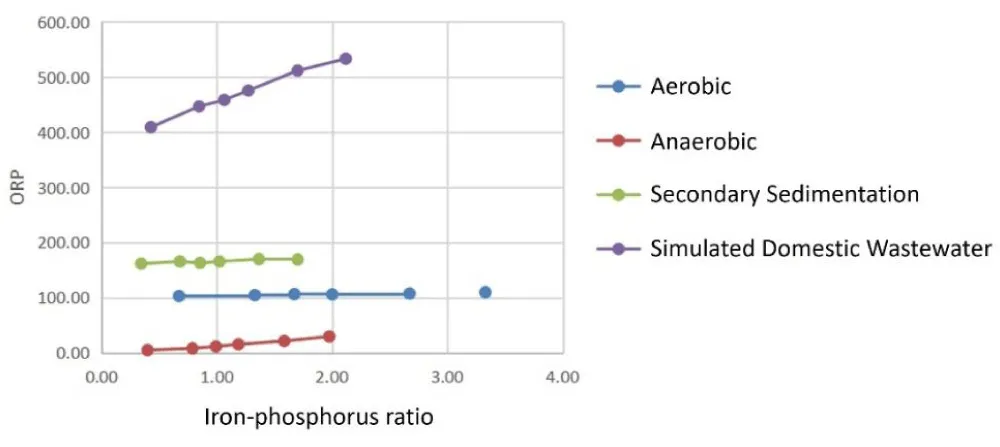

Figure 5: Influence of different water quality on ORP under different ratio of Fe:P Ratio.

The aforementioned figure and Table 2.1 can be obtained when the dosage of iron salt and phosphorus in the water is increased. In this case, the water redox potential increases, water oxidation is accelerated, and the redox potential of the water quality presents a clear stratified distribution. The specific results for the simulation of sewage, two-sedimentation of sewage, aerobic wastewater, anaerobic wastewater, and anaerobic wastewater are presented below. This differs from the previous scenario, in which the aerobic wastewater was subjected to two sedimentation tanks prior to phosphorus removal. Moreover, the size of the ORP after dosing and the efficiency of phosphorus removal exhibited a positive correlation (Figure 6).

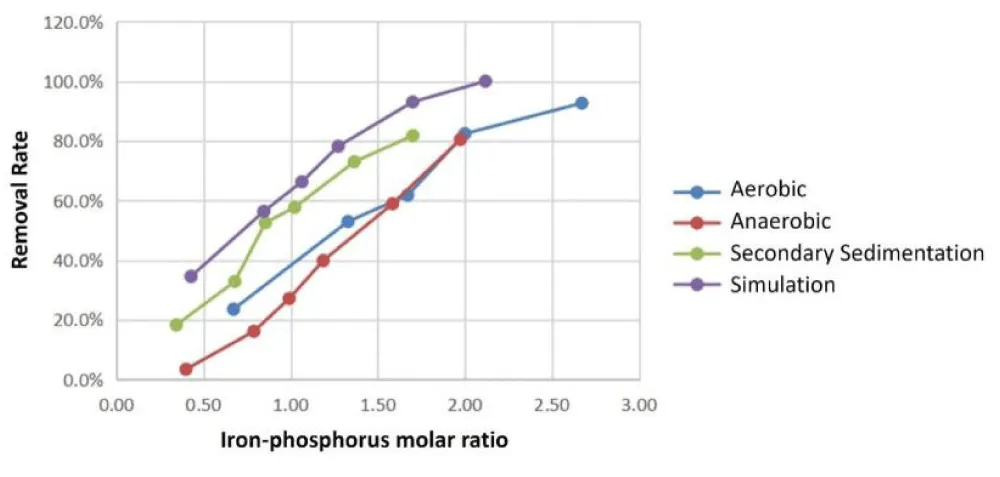

Figure 6: Influence of different water quality on Phosphate removal rate under different ratio of Fe:P Ratio.

This Figure above illustrates the disparate impact of varying water quality on phosphorus removal. The simulation depicts the highest removal rate of sewage, followed by two sinks, aerobic and anaerobic, which exhibit the lowest performance. The figure also demonstrates that the iron and phosphorus ratio of aerobic sewage removal rate is greater than that of anaerobic sewage when the mole ratio is greater than 1.5. However, after the removal of the effect, the performance is essentially similar.

In conclusion, the analysis indicates that:

1. The initial pH of the water is 7-7.2, which demonstrates that the effect of phosphorus removal is not significant. However, the addition of phosphorus removal chemicals to simulated domestic wastewater resulted in the greatest reduction in pH value, indicating that the water quality was the most affected.
2. A notable aspect of the study is the absence of a discernible pattern in the ZATA potential in phosphorus removal, both before and after the addition of phosphorus removal chemicals.
3. The process of phosphorus removal is accompanied by the removal of organic matter, which is a crucial finding.
4. There is a positive correlation between the solution ORP and the removal rate of phosphorus after the addition of a phosphorus removal agent. With the increase in dose, the redox potential becomes larger, indicating an enhanced oxidizing effect.

Mechanism of organics affecting on the Fe(III)-dependent phosphorus removal

Ferric ion-dependent phosphorus removal process with CA: The mechanism of phosphorus removal by Fe(III) is currently a topic of debate and research. Two potential mechanisms of Fe(III)-dependent phosphorus removal are widely accepted: 1) Fe(III) rapidly hydrolyzes to form iron hydroxyl oxide (Fe-HFO) (Eq. 1), which then absorbs phosphate to remove phosphorus from wastewater. 2) Ferrous iron (Fe(II)) reacts directly with phosphate to form iron phosphate precipitation (Eq. 2), which is a mechanism for the removal of phosphorus [38].

Fe³⁺+3OH-→FeOOH                                                                 (1)

The Fe-HFO then absorbs phosphate ions from the wastewater, effectively removing phosphorus. This process relies on the adsorption of phosphate to the Fe-HFO surface, which binds phosphate ions, leading to their removal from the water. This mechanism is widely considered an efficient method for phosphorus removal, as iron hydroxide is highly effective in adsorbing phosphate under certain conditions.

Formation of Iron Phosphate Precipitation (Fe(II)-Phosphate): Another proposed mechanism is based on the reduction of Fe(III) to Fe(II), which then reacts with phosphate to form insoluble iron phosphate precipitates. The chemical equation for this reaction is:

Fe³⁺+PO₄^3-→FePO₄(s)                                                                (2)

In this mechanism, ferrous iron (Fe(II)) reacts directly with phosphate ions, forming iron phosphate (FePO₄) precipitates. These precipitates are insoluble and thus effectively remove phosphate from the aqueous phase. This mechanism typically requires the presence of reducing conditions or a source of Fe(II), which may be generated through the reduction of Fe(III) under certain environmental conditions. Both mechanisms are important in the context of Fe(III)-dependent phosphorus removal, and the relative contributions of each may depend on factors such as pH, the presence of other ions, and the specific iron species involved. The actual process may involve both mechanisms to varying extents, and ongoing research aims to better understand how these processes occur under different wastewater treatment conditions.

To investigate the mechanism through which organic compounds influence Fe(III)-dependent phosphorus removal, citric acid (CA) was selected as the representative organic compound. Two experimental groups, namely the CCPR and HFO groups, were established for this purpose. The results, as shown in Figure 7, reveal that CA had a significant effect on the efficiency of phosphorus removal in both groups. As the concentration of CA in the reaction system increased, a continuous decline in phosphorus removal efficiency was observed. Notably, when the concentration of CA was below 30 mg·L−1, the phosphorus removal efficiency in the CCPR group was higher than that in the HFO group.

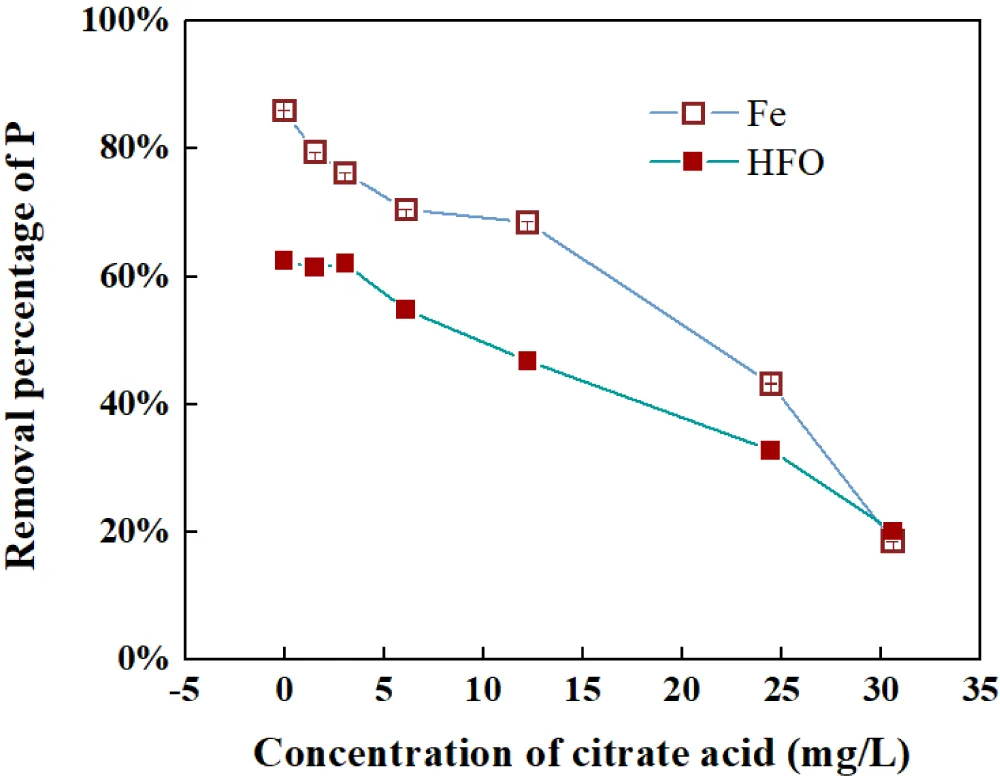

Figure 7: Effects of CA on the phosphorus removal efficiency in both CCPR group and HFO group.

In accordance with the principles of thermodynamics and the findings of Rose, et al., the hydrolysis of Fe (III) ions in aqueous solution occurs at an exceedingly rapid rate, resulting in the formation of Fe-HFO [39,40]. Figure 8 illustrates the alteration in the bulk liquid of a conventional chemical phosphorus removal system following the addition of a specific quantity of CA. Figure 8-A illustrates the formation of iron-phosphorus precipitates in the CCPR system, with a phosphorus removal percentage of 82.5%. As illustrated in Figure 8-B, following the introduction of CA into the system, the iron-phosphorus precipitate gradually diminished, and the liquid assumed a clarified, bright yellow hue. The percentage of phosphate removed was found to be zero. The precipitation of iron and phosphorus was found to be completely absent when the concentration of CA in the system reached 30 mg·L^-1.

Figure 8: Effects of CA on the conventional phosphorus removal.

As illustrated in Figure 9, when the concentration of CA was set to zero, the phosphorus removal percentage in the CCPR group reached 86%, while the corresponding figure for the HFO group was 62.4%. It is evident that in the Fe(III)-dependent phosphorus removal process, the majority of the phosphate was removed through adsorption to the Fe-HFO surface. In the CCPR process, the Fe(III) was added and partially reacted directly with phosphate, forming an iron-phosphorus precipitate. The remainder of the added Fe(III) underwent hydrolysis to form Fe-HFO, which then adsorbed phosphate, thereby achieving phosphorus removal. The data demonstrated that the Fe-HFO process was responsible for 73% of the total phosphorus removal. Figure 8 illustrates the addition of CA to a system wherein an iron-phosphorus precipitate had already formed. The CA effectively displaces the HFO from the iron-phosphorus precipitate, preventing it from undergoing a complexation reaction [41], and thus preventing the formation of precipitates.

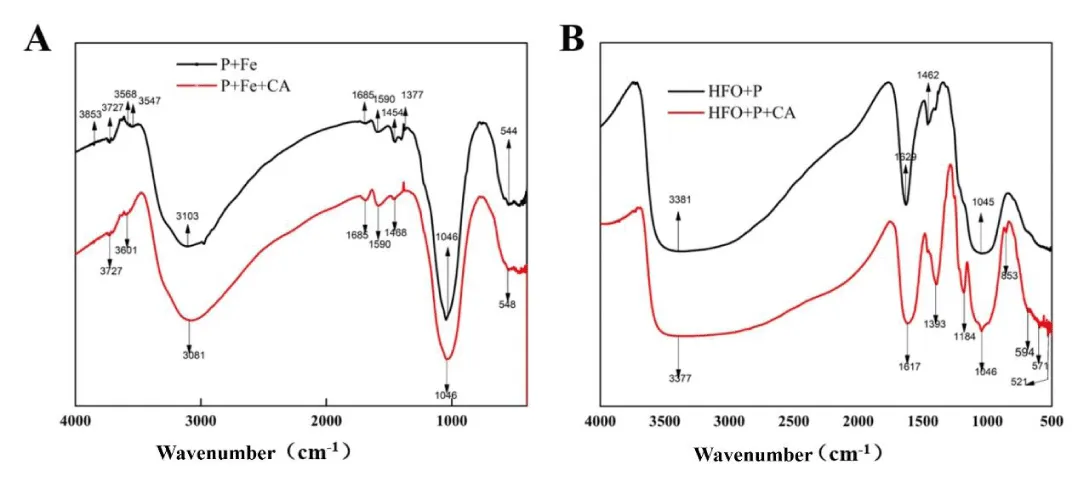

Figure 9: Fourier infrared spectrum of samples in the conventional phosphorus removal system (A) and the HFO-dependent phosphorus removal system (B).

Chemical bond change in the process of Fe(III)-dependent phosphorus removal: To gain further insight into the mechanism by which organics influence Fe(III)-dependent phosphorus removal efficiency, the formation and fracture of chemical bonds in the reaction system were analyzed using FTIR.

Figure 9-A illustrates the alteration in chemical bonds in the samples prior to and following the incorporation of CA into the CCPR group. The stretching vibration peaks of the hydroxyl group, observed at 3547 cm^-1 and 1377 cm^-1, are reported in [42-44]. The addition of CA resulted in the disappearance of the peak positions at 3547 cm^-1 and 1377 cm^-1, as well as a reduction in the peak areas at 3103 cm^-1, 1453 cm^-1, 1046 cm^-1, and others. These observations indicate that the addition of CA has affected the formation of the hydroxyl group (the number of hydroxyl groups decreased). Concurrently, the absorption band at 3103 cm^-1 exhibited a forward shift, indicative of enhanced stability in the formation of hydrogen bonds between the novel molecules.

A thermodynamic analysis indicates that the equilibrium constant for organic ligands is predominantly greater than that of inorganic ligands. It was therefore postulated that new organic complexes may have been formed in the reaction system. In the absence of any previous reports concerning CA-phosphate complexes, it can be inferred that the newly formed organic complex within the system is a complex of CA and Fe (III).

Figure 9-B illustrates the alteration in chemical bonds in the samples prior to and following the introduction of CA into the HFO group. The absorption band at 3381 cm^-1, 1629 cm^-1, and 1462 cm^-1 exhibited a downward shift, while new absorption bands emerged at 594 cm^-1, 571 cm^-1, and 521 cm^-1. This suggests that the hydrogen bond in the system was either enhanced or a new, stronger intermolecular bond was formed. Moreover, the absorption peak area at 3381 cm^-1 and 1629 cm^-1 exhibited a reduction, indicative of a decline in the number of hydroxyl groups within the system. The same result was observed in Figure 9-A, which led to the hypothesis that CA reacted with Fe-HFO to form a complex.

The addition of CA disrupted the original chemical equilibrium during the Fe(III)-dependent phosphorus removal process. The CA demonstrated a stronger affinity for the Fe-HFO than the phosphate. The addition of CA and phosphate to the system resulted in competition for the binding site of Fe-HFO, ultimately leading to the formation of an iron citrate complex. Nevertheless, the phosphate remained in solution, thereby reducing the efficiency of phosphorus removal in the system.

Product analysis of Fe(III)-dependent phosphorus removal with the CA addition: To clarify the role of citrate in modulating the Fe(III)-dependent phosphorus removal mechanism, mass balance and kinetic analyses were conducted using a centrifugal graded extraction method. Specifically, 0.22 μm membrane filtration was applied to separate dissolved and particulate fractions, 0.1 mol·L^-1 NaOH to desorb adsorbed phosphorus, and 1 mol·L^-1 HCl to dissolve precipitated phosphorus, enabling quantitative determination of phosphorus and iron speciation. In the absence of citrate, precipitated phosphorus accounted for 65% ± 3% of total phosphorus, with a Fe:P molar ratio of 1.02 ± 0.05 in Fe-P precipitates, indicating a precipitation-dominated mechanism. With 30 mg·L^-1 citrate addition, the proportion of precipitated phosphorus decreased to 18% ± 2%, while the Fe:P ratio in Fe–P precipitates increased to 2.3 ± 0.1. Meanwhile, adsorbed phosphorus rose from 28% ± 2% to 52% ± 3%, and the fraction of Fe associated with Fe-HFO increased from 32% ± 3% to 67% ± 4%. Mass balance closure was achieved with deviations <5% between calculated and initial values. Kinetic monitoring further demonstrated that without citrate, precipitated phosphorus accumulated rapidly within the first 5 minutes (rate constant 0.12 ± 0.01 min-1) and stabilized after 10 minutes. In contrast, citrate addition markedly suppressed precipitation (rate constant 0.01 ± 0.002 min-1), while adsorbed phosphorus increased gradually with Fe-HFO formation (rate constant 0.03 ± 0.003 min-1). These results confirm that citrate inhibits Fe–P precipitation while promoting Fe-HFO adsorption, thereby shifting the phosphorus removal pathway from precipitation-dominated to adsorption-dominated. The composition of the products in the CCPR and HFO groups was analyzed by X-ray Diffraction (XRD) before and after the addition of CA. The results are presented in Figure 10.

Figure 10: XRD spectrum of samples in the conventional phosphorus removal system (A) and the HFO-dependent phosphorus removal system (B).

Figure 10-A illustrates the alteration in the composition of the CCPR group prior to and following the incorporation of CA. Prior to the addition of CA, the phosphate in the system underwent a reaction with the Fe (III) ions, resulting in the formation of iron-phosphorus crystals (as evidenced by the sharp peak observed in the P+Fe curve in Figure 10-A). The specific species are presented in Table 2. Following the addition of CA, the original crystal structure of iron and phosphorus was disrupted, and the samples were predominantly observed to exist in the form of amorphous Fe-HFO (P+Fe+CA curve in Figure 10-A, Table 2).

Figure 10-B illustrates the compositional alterations in the HFO group prior to and following the introduction of CA. No crystals were generated in the HFO system (Figure 10-B, Table 2) [45]. Upon the addition of phosphate, iron-phosphorus crystals emerged within the system (HFO+P curve in Figure 10-B, Table 2), exhibiting a spectrum analogous to that of the P+Fe curve in Figure 10-A. This observation substantiates the assertion that the HFO group represents the crux of the CCPR process. Upon the continual addition of CA to the system (HFO+P+CA curve in Figure 10-B), the sharp peak of the HFO+P curve was no longer evident (Figure 10-B), indicating that the iron-phosphorus crystal structure was destroyed and that CA had effectively “preempted” the Fe-HFO. This resulted in the release of phosphate into the solution and a reduction in the efficiency of phosphorus removal. A comparison of the P+Fe+CA curve in Figure 10-A with the HFO+P+CA curve in Figure 10-B demonstrates that the differing addition order of phosphate and Fe (III) resulted in disparate products. The addition of Fe(III) to a system containing CA and phosphate resulted in the formation of products with reduced purity. However, in a system containing Fe-HFO and phosphate, the addition of CA did not result in any alteration to the HFO species. CA is more competitive than phosphate in terms of competing for Fe-HFO, and CA affects the efficiency of phosphorus removal that is dependent on ferrous iron (Table 8).

Mechanism of the effect of CA on Fe(III)-dependent phosphorus removal efficiency: The fundamental principle underlying the CCPR group process is the adsorption and precipitation of phosphate by the Fe-HFO. As illustrated in Figure 11-A, when the pH value is above 2.2 in the bulk liquid, the Fe (III) undergoes hydrolysis upon entering the water body, resulting in the formation of the Fe-HFO. The Fe-HFO adsorbs the phosphate, forming precipitates that achieve the objective of phosphorus removal.

Figure 11-B illustrates the mechanism of the ferrous iron-dependent phosphorus removal process in the absence of CA. In the aqueous environment, the predominant form of Fe(III) is the HFO. The phosphate is absorbed by the HFO, forming flocs which subsequently precipitate. Only a limited number of dissolved ferric ions undergo a reaction with phosphate to form Fe-P precipitates [46].

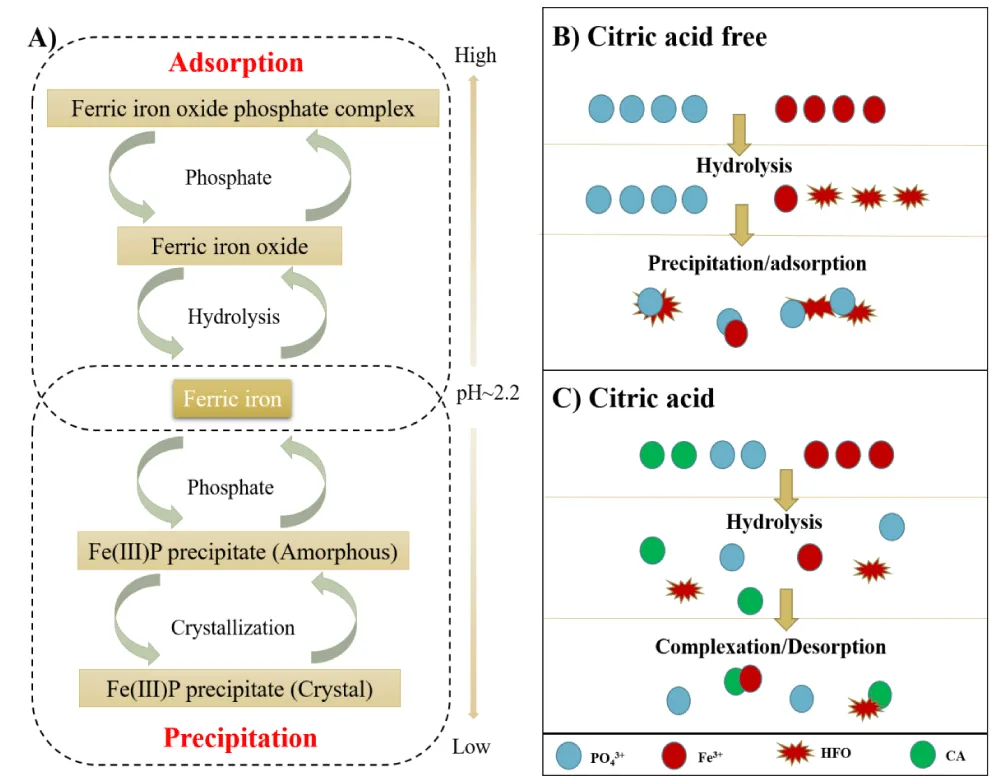

Figure 11: Mechanism of the effect of CA on ferrous iron-dependent phosphorus removal efficiency.

Figure 11-C illustrates the mechanism of the Fe-HFO process in the presence of CA. In the presence of CA in the water body, the Fe (III) initially undergoes hydrolysis to form Fe-HFO. In comparison to phosphates, the CA exhibits a greater affinity for the Fe-HFO, occupying the adsorption site and displacing the phosphate. Additionally, the CA forms a complex with free Fe(III) ions, namely iron citrate, which also reduces the efficiency of phosphorus removal in the system.

Conclusion

This study systematically elucidated the inhibitory effects of organics on Fe(III)-mediated phosphorus removal. Results confirm that carboxyl-rich compounds, particularly polycarboxylic acids, exert disproportionately strong interference by competing for Fe-hydroxide surface sites and forming stable Fe–organic complexes. Consequently, adsorption onto Fe-hydroxide remains the dominant removal pathway, while direct precipitation contributes less. The key findings are summarized as follows:

1. Influence of organic functional groups: Carboxyl-containing organics exhibited a significantly greater inhibitory effect on phosphorus removal compared to hydroxyl-containing organics under Fe(III)-mediated conditions.
2. Dominant removal pathway: The conventional Fe(III)-dependent phosphorus removal mechanism is primarily driven by the adsorption of phosphate onto Fe-hydroxide flocs (Fe-HFO), which accounted for approximately 73% of total phosphorus removal. In contrast, direct precipitation via chemical complexation with free Fe(III) contributed only 27%.
3. Mechanistic insight: The reduced phosphorus removal efficiency in the presence of carboxyl organics is attributed to competitive binding. Carboxyl groups preferentially occupy the active sites on Fe-HFO, thereby inhibiting phosphate adsorption and disrupting the Fe–P precipitation pathway.
4. Engineering implications: Pre-removal of carboxyl-functional organics may enhance the efficiency of Fe(III)-based phosphorus removal systems. This finding offers a promising strategy for optimizing future wastewater treatment processes.

From an engineering perspective, these findings highlight that wastewater with high VFA/DOC ratios or elevated carboxyl fractions poses a significant challenge to chemical phosphorus removal. Practical strategies include pretreatment to reduce carboxyl organics, adaptive Fe(III) dosing, and pH optimization to balance Fe-hydrolysis and minimize complex stability. While laboratory-scale experiments provided clear mechanistic insights, real wastewater systems are more complex, with variable ionic strength, alkalinity, and organic diversity. Thus, future work should focus on validating these mechanisms in pilot or full-scale systems, refining pretreatment technologies, and developing advanced Fe-based or hybrid materials with higher selectivity and resilience against organic interference.

Overall, the study establishes a quantitative and mechanistic basis for improving Fe(III)-based phosphorus removal under organic-rich conditions, offering actionable guidance for wastewater treatment plants while pointing toward the need for more robust, adaptive treatment strategies.
